isted below are the five scanner tunings tested by Pangolin. There are over 50 photos of these tunings available on the website. Click on a link to display an overview and/or a close-up of one of the tests. After viewing the photo, use the "Back" button on your browser to return to this page.
        In the gray column at left are photos of the ILDA Test Pattern at the largest size which can be displayed by the scanner/amp system being tested. Click on the photos to see a twice-size enlargement.


Catweazle LC II, tuned to ILDA 30K

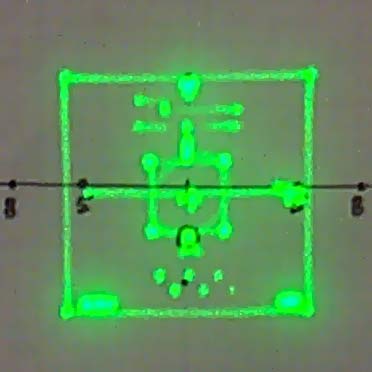

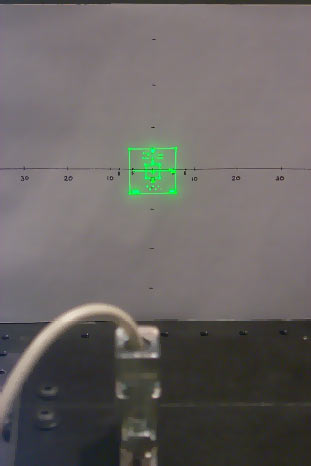

• ILDA Test Pattern correctly displayed at 6 degrees: Overview, Close-up

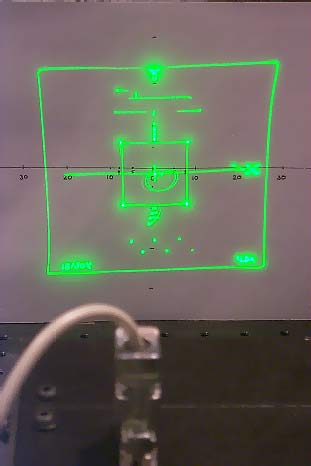

• ILDA Test Pattern at 25 degrees (shown at left): Overview. The Catweazle may be able to scan larger, but this was the maximum size available during testing. (We did not want to change the gain on these borrowed scanners.)

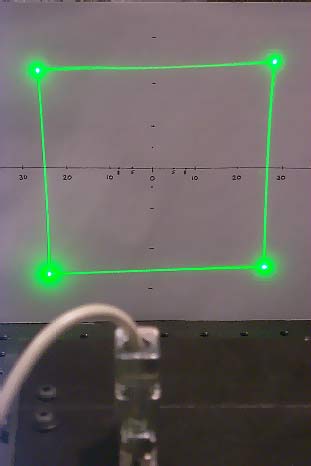

• Square wave at 25 degrees: Overview, Close-up
• Creation abstract frame: Overview

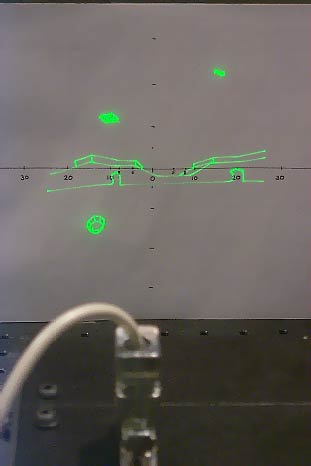

• Creation doors frame: Overview, Close-up

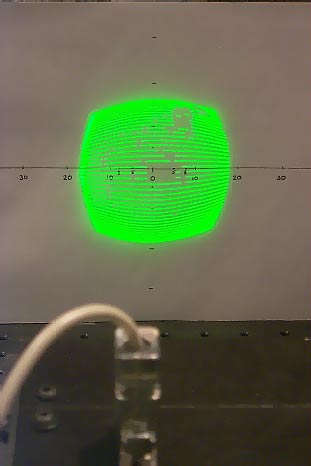

• Creation raster frame: Overview

     Click here for the Catweazle website, www.medialas.com


General Scanning G-120 with TurboTrack 2 amplifers, tuned to ILDA 30K

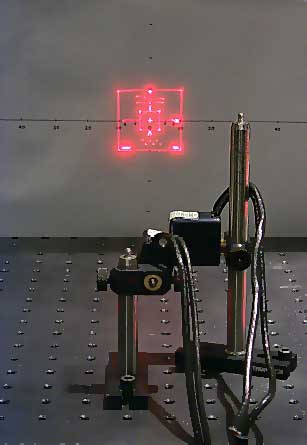

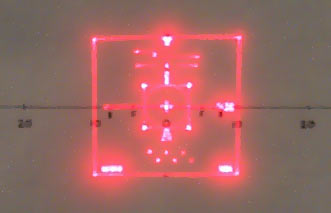

• ILDA Test Pattern correctly displayed at 10 degrees: Overview, Close-up

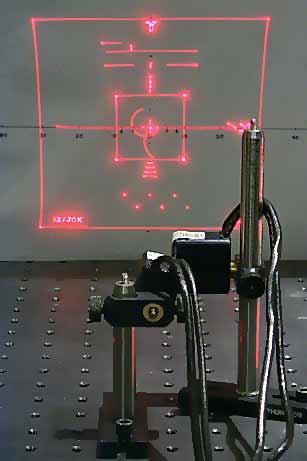

• ILDA Test Pattern at 30 degrees (shown at left): Overview

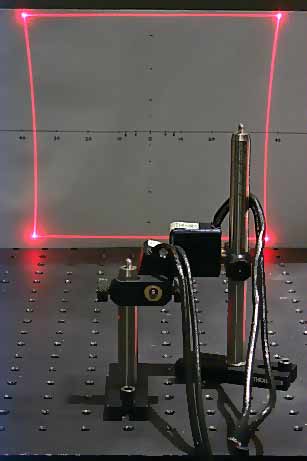

• Square wave at 35 degrees: Overview, Close-up

     Since March 1999, General Scanning Inc. is now GSI/Lumonics Inc. Click here for the GSI/Lumonics website,www.gsilumonics.com.
        Click here for the website from LSDI, makers of the TurboTrack 2 scanner amp, www.lsdi.com.


Cambridge 6800, tuned to ILDA 30K

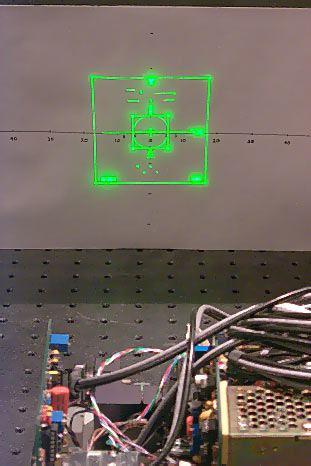

• ILDA Test Pattern correctly displayed at 18 degrees: Overview, Close-up

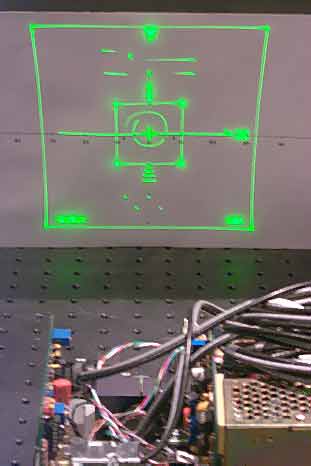

• ILDA Test Pattern at 30 degrees (shown at left): Overview

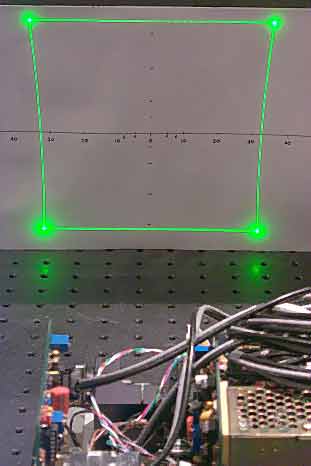

• Square wave at 30 degrees: Overview, Close-up

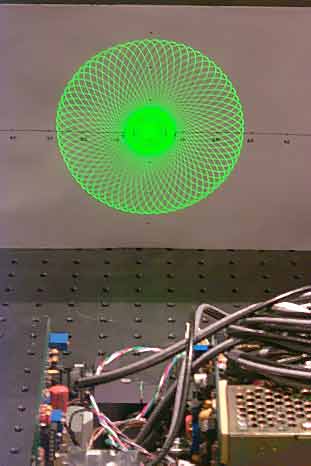

• Creation abstract frame: Overview

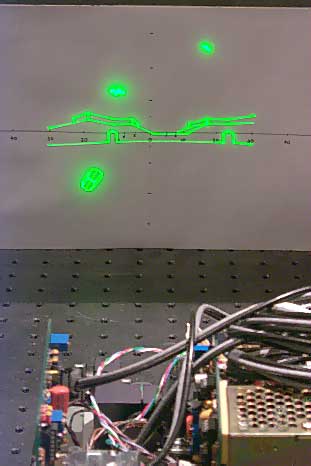

• Creation doors frame: Overview, Close-up

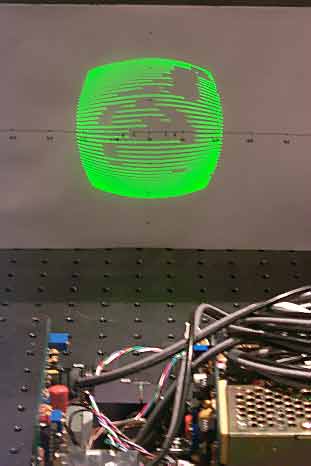

• Creation raster frame: Overview

     Click here for the Cambridge Technology website, www.camtech.com

Cambridge 6800 with Pangolin TrueK 50, tuned to ILDA 50K

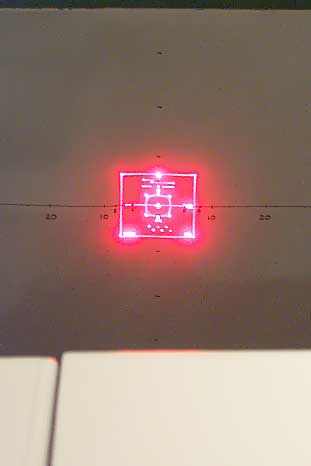

• ILDA Test Pattern correctly displayed at 7 degrees: Overview, Close-up, Enlarged on ceiling to show detail

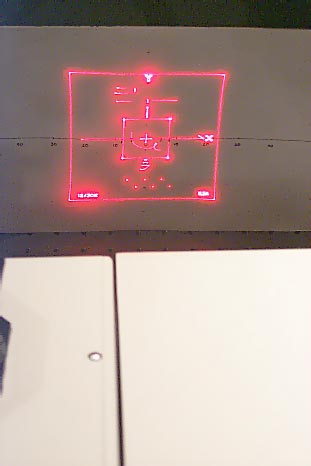

• ILDA Test Pattern at 25 degrees (shown at left): Overview. This is the largest size the test pattern can be shown, before power limiting occurs.

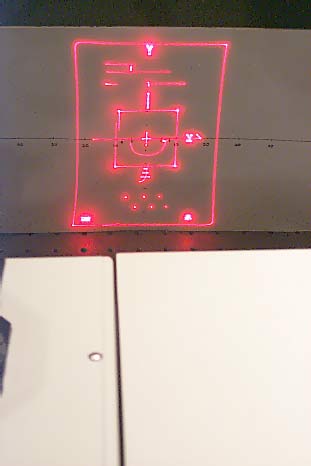

• ILDA Test Pattern at 30 degrees: Overview. The test pattern shows power limiting in the X-axis, at this scan angle.

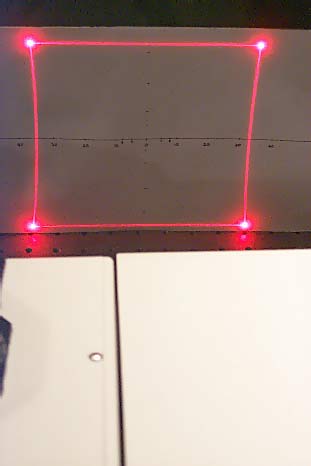

• Square wave at 30 degrees: Overview, Close-up

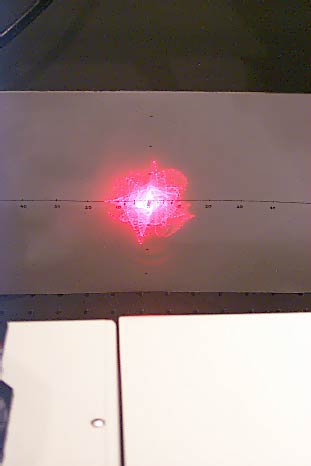

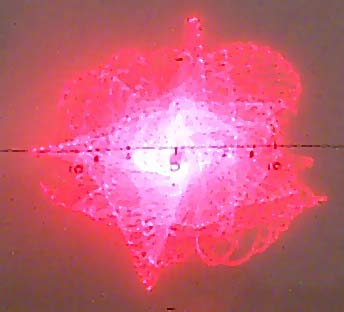

• Creation abstract frame: Overview, Close-up

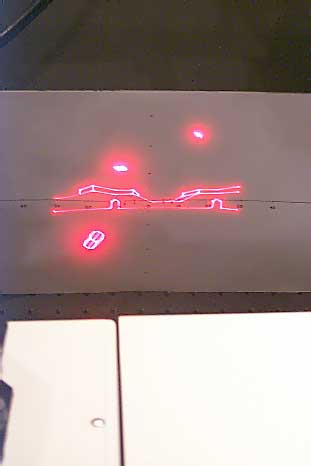

• Creation doors frame: Overview, Close-up

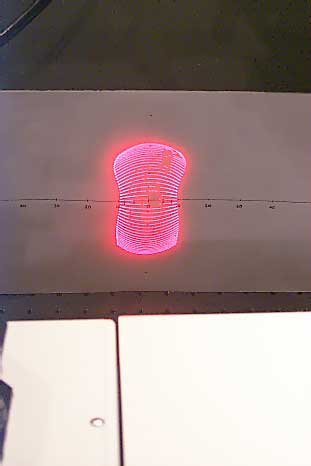

• Creation raster frame: Overview

     Click here for the TrueK 50 web page, www.pangolin.com/50K.htm


Cambridge 6210, tuned to Cambridge-selected specs

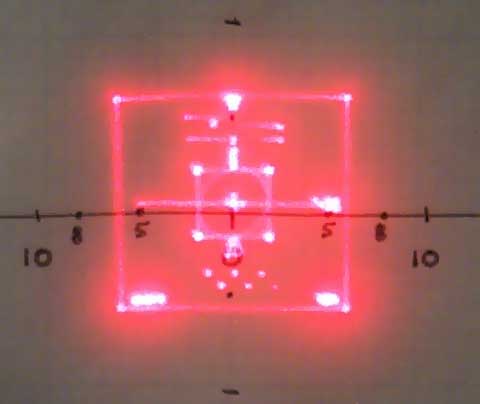

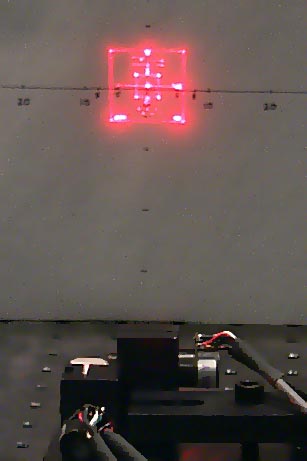

• ILDA Test Pattern correctly displayed at 6 degrees: Overview, Close-up

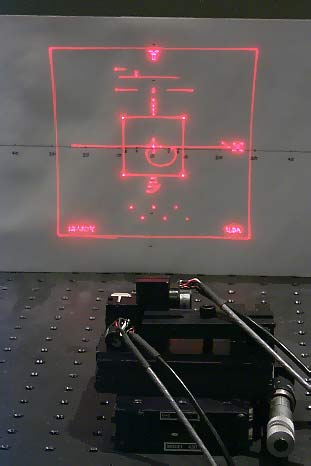

• ILDA Test Pattern at 28 degrees (shown at left): Overview. This is the largest size the test pattern can be shown, before power limiting occurs.

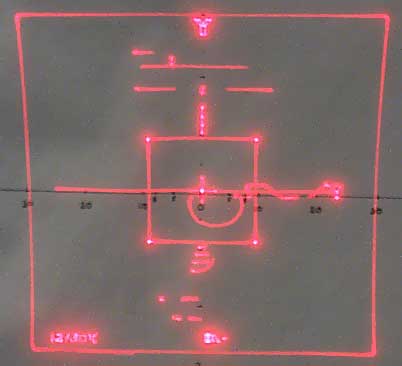

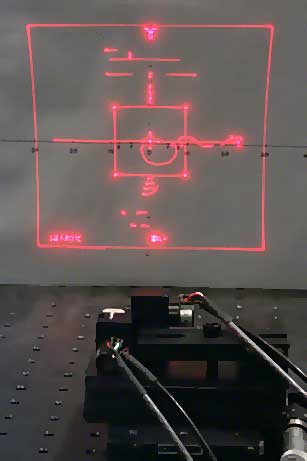

• ILDA Test Pattern at 30 degrees: Overview, Close-up. The test pattern "X" and "ILDA" parts show power limiting at this scan angle.

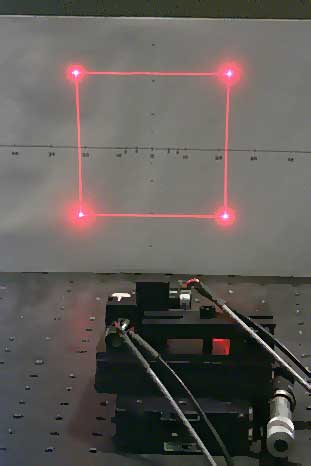

• Square wave at 22 degrees: Overview, Close-up. Overshoot begins to be apparent at 22 degrees.

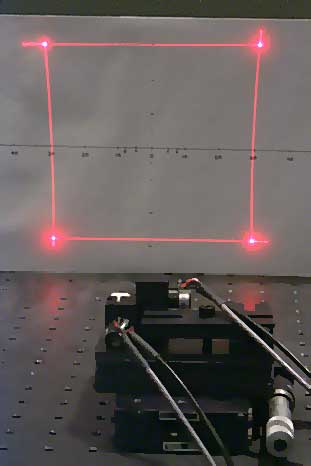

• Square wave at 30 degrees: Overview, Close-up. Overshoot is about 10% at 30 degrees.

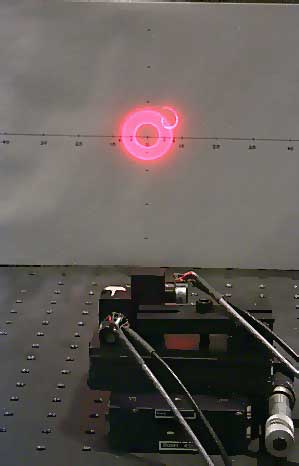

• Creation abstract frame, OK: Overview of the largest this particular abstract can be shown before power limiting occurs.

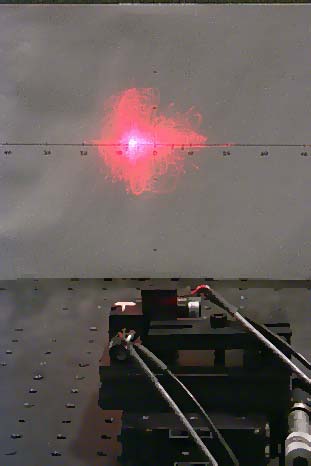

• Creation abstract frame, power limiting: Overview. If the abstract is too large, the 6210 goes into power limiting.

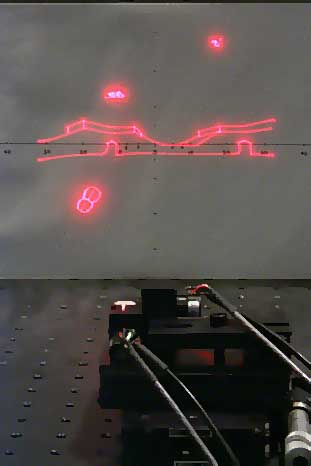

• Creation doors frame: Overview, Close-up

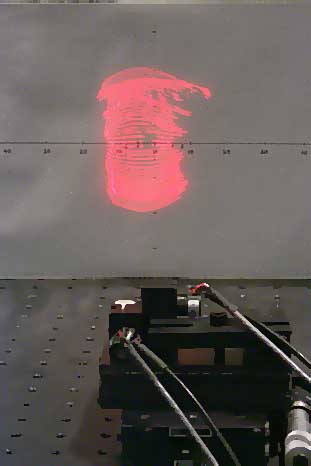

• Creation raster frame: Overview

     Two other frames show performance at point output rates above 50K:

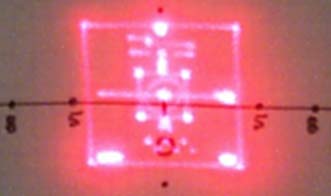

• ILDA Test Pattern output at 60K, correctly displayed at 4 degrees: Close-up

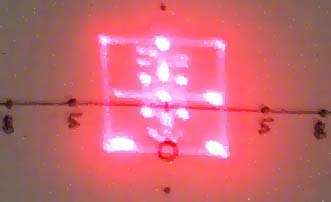

• ILDA Test Pattern output at 72K, correctly displayed at 3 degrees: Close-up

     Click here for the Cambridge Technology website, www.camtech.com
